Dispositif Désinfection

Developed by Fablab Digiscope.

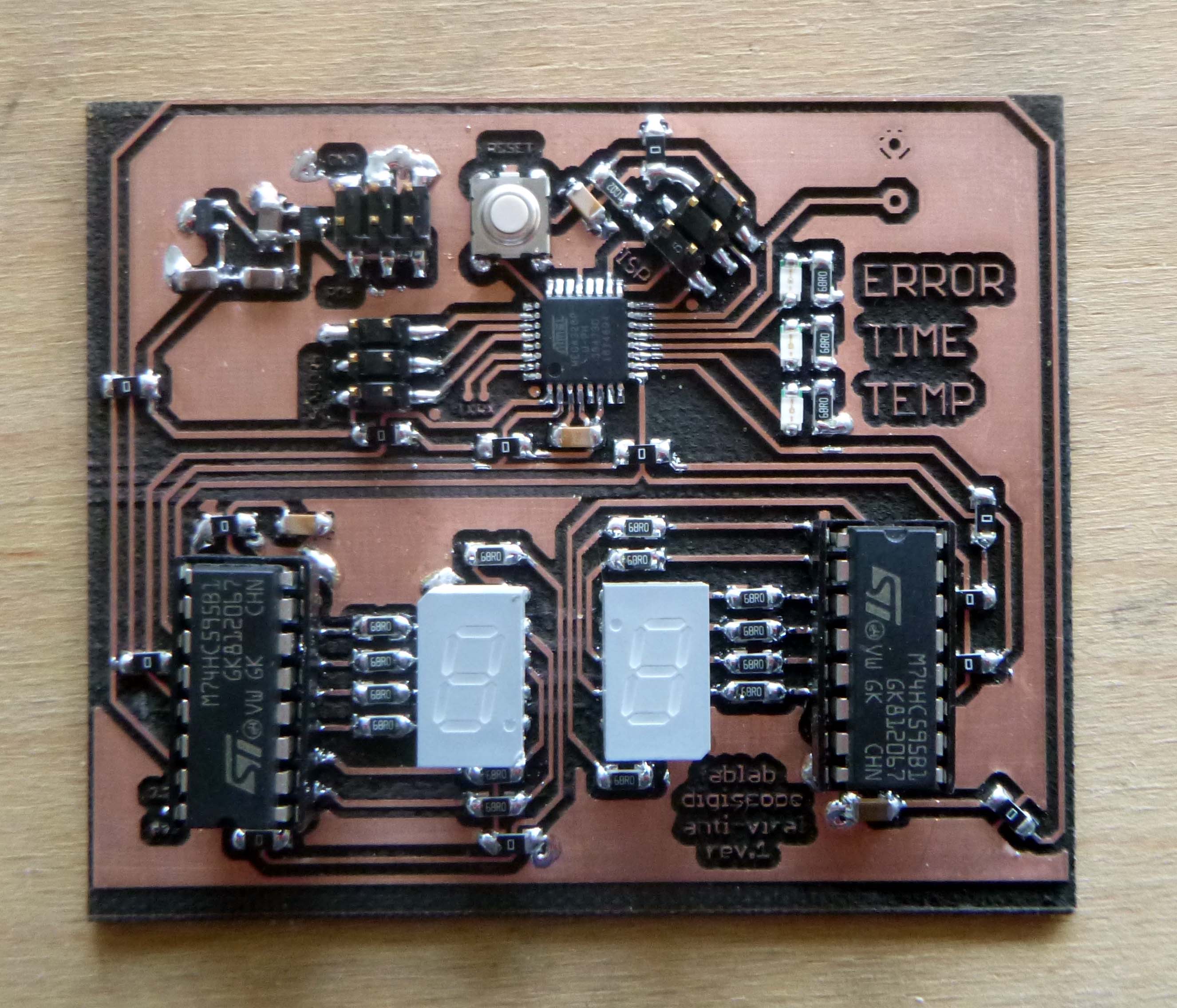

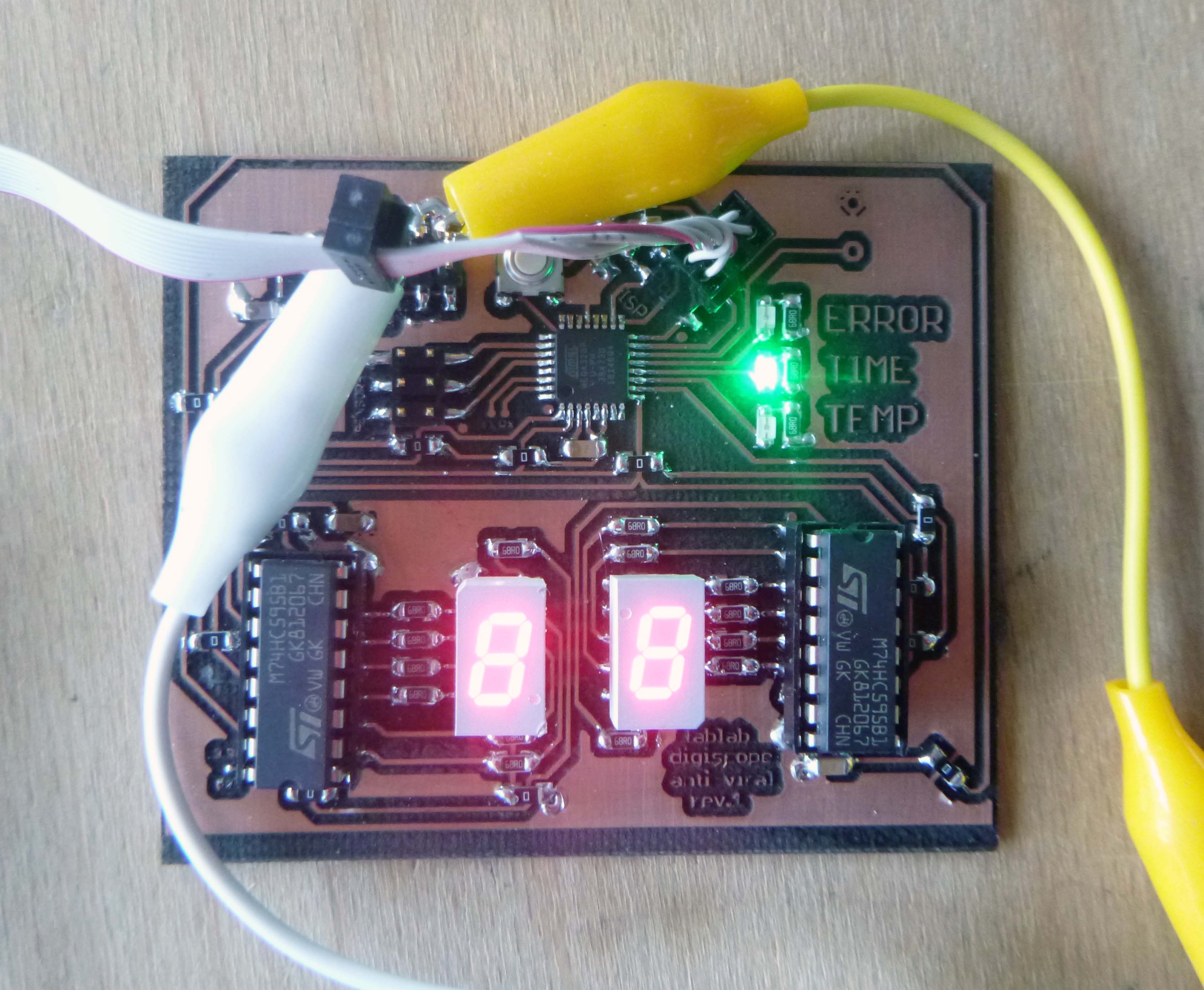

A board to sense the temperature and illumination, and act as an interface, inside a disinfection device:

https://github.com/merlinmarrs/anti-viral-dispositif/

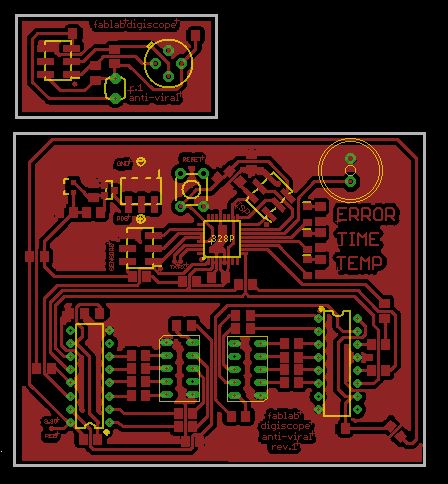

A main board and secondary board to control a disinfection chamber based on this tutorial: http://www.needlab.org/face-masks-disinfection-device

Here is the BOM:

Standard components:

7 segment display x2 595 Shift Register x2 LED x 2 Photocell Piezo Atmega 328p micro-swith (CHECK MAX VOLT + AMP RATING)

exotic components:

lampe UV-C à Amazon.fr:

https://www.amazon.fr/Germicide-Ultraviolet-st%C3%A9rilisateur-Submersible-radiations/dp/B07Y82SM36/ref=sr_1_4?__mk_fr_FR=%C3%85M%C3%85%C5%BD%C3%95%C3%91&dchild=1&keywords=uv+aquarium+sterilizer&qid=1587383305&s=hi&sr=1-4-catcorr

2. MLX90614 (pas en rayon a Mouser, Farnell, Sparkfun, Polulu ou Adafruit) à Digikey (ou c’est “hors prix”) ou Amazon.fr:

https://www.digikey.com/product-detail/en/melexis-technologies-nv/MLX90614ESF-DCA-000-TU/MLX90614ESF-DCA-000-TU-ND/2025323

https://www.amazon.fr/MLX90614ESF-MLX90614ESF-BAA-000-TU-ND-thermom%C3%A8tre-infrarouge-compatible/dp/B07JBKM2K3/ref=sr_1_1?__mk_fr_FR=%C3%85M%C3%85%C5%BD%C3%95%C3%91&dchild=1&keywords=MLX90614&qid=1587470750&s=hi&sr=1-1-catcorr







Still waiting for the temperature sensor to arrive in the mail.
